CU/MICA&LSZH/OS/FRPVC/SWA/VERMIN-PROOF FRPVC FIRE RESISTANT TELEPHONE CABLE

Application:

This cable is used for communication and telephone systems as main and distribution cabling. Armored type is

offered for direct burial & harsh environment installations due to it additional mechanical protection.

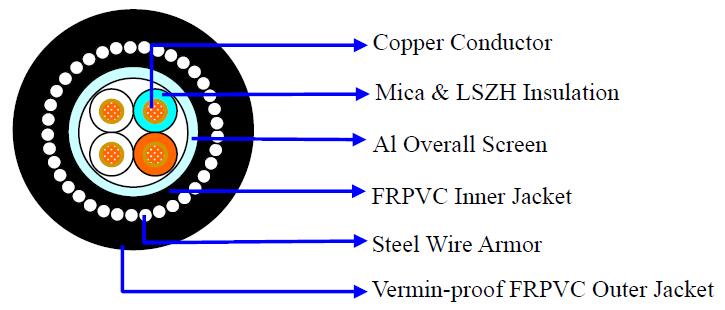

Construction:

CU/MICA&LSZH/OS/FRPVC/SWA/VERMIN-PROOF FRPVC FIRE RESISTANT TELEPHONE CABLE

Conductor:Plain Annealed Solid Copper to IEC 228 Class 1

Insulation: Mica and LSZH insulation

Shape:Circular

Overall Screen:Overall Polyester/ Aluminium foil screened plus copper drain wire

Bedding:FRPVC

Armour: Galvanized Steel Wire Armour

Outer Sheath:Vermin-proof FRPVC

Standard:IEC60332 & IEC60331

Marking:

The cable is marked with white or other colors as follows:

Caledonian Cables Co., Ltd

Type and size of cable

Manufacturing date

Meter Marking

The meter mark is printed every meter with an accuracy of 0.5%.

Other printing are available according to customer request.

Table 1. Technical Data

Number of Pairs

Diameter of Conductor (mm)

Nominal Dia under Armour (mm)

Armour Wire Dia (mm)

Thickness of Outer Jacket
(mm)

Diameter of Cable (mm)

4

0.9

19.0

1.5

1.8

25.6

25

0.9

42.2

2.0

2.5

51.2

The data included in the present catalogue are merely indicative; Caledonian Cables Limited reserves to itself the right to change them as its own discretion in any time.
